Bathyswath-3

Bathyswath-3 has a completely new design and electronics platform giving improved performance in a fully integrated system.

Small, compact and innovative, the Bathyswath-3 goes beyond the performance of the Bathyswath-2 with these new features:

▪ Wideband (chirp) sonar technology
▪ 3 sonar frequencies simultaneously, in bathymetry and sidescan
▪ Fully integrated bathymetric system (sonar, INS/MRU, GNSS, Sound Velocity Sensor, Single-board computer)

Different configurations for different uses

  • B3A : Bathyswath-3 ALPHA Subsea Unit (Fully integrated solution)
  • B3S : Bathyswath-3 SIGMA (sonar only solution)
  • B3OEM : Bathyswath-3 OEM (sonar only solution in OEM configuration)

Bathyswath-3 ALPHA (B3A)

Fully integrated solution

Bathyswath-3 ALPHA (B3A) has an integrated module for mounting on a pole over the side of a boat, including INS for motion sensing, GNSS for measuring position, a Sound Velocity Sensor, and an integrated single-board computer to aid integration with external software packages.



Simultaneous frequencies: 250 kHz / 500 kHz / 1000 kHz

  • Operational slant range (m) 200/100/50
  • Maximum slant range (m) 300/150/75
  • Horizontal beam width, two-way 0.5°/0.25°/0.25°
  • Subsea unit dimensions (mm) 642 x 220 x 477
  • Subsea unit weight (kg) TBD
  • Pressure depth rating (m) 100
  • Marine services
  • Research
  • Environment
  • Natural Resources
  • Archaeology
  • Military Rapid Environmental Assessments (REA)
Download of documents

Bathyswath-3 ALPHA (B3A) brochure

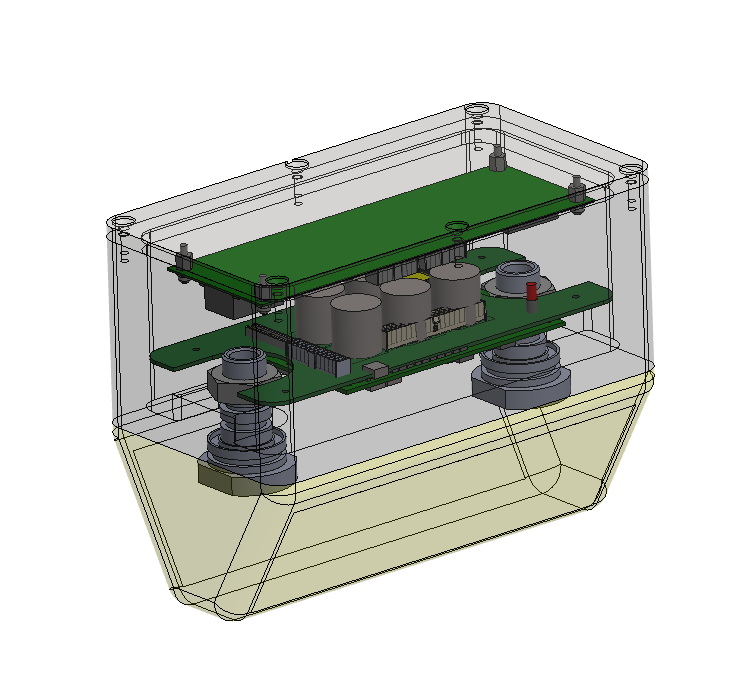

Bathyswath-3 SIGMA (B3S)

Sonar only solution

Bathyswath-3 SIGMA (B3S) has been designed for applications that need a small sonar package. It is ideal for use on small USVs, or on a lightweight survey pole.

The sonar electronics is integrated into the sonar head, so a small, flexible cable is used to connect it to the surface.

If the vessel or vehicle has its own computer, motion, and navigation sensors, then the Sigma box can be directly connected through the power, Ethernet, and timing connections in its cable.
If an integrated system is needed, then the ITER Systems Navbox is the perfect companion to the Sigma transducer.

Simultaneous frequencies: 500 kHz / 1000 kHz  / 1800 kHz

  • Operational slant range (m) 135/70/35
  • Maximum slant range (m) 200/100/50
  • Horizontal beam width, two-way 0.25°/0.25°/0.25°
  • Subsea unit dimensions (mm) 218 x 128 x 202
  • Subsea unit weight (kg) 3.3 in air. 0.2 in water
  • Pressure depth rating (m) 10
  • Marine services
  • Research
  • Environment
  • Natural Resources
  • Archaeology
  • Military Rapid Environmental Assessments (REA)
Download of documents

Bathyswath-3 SIGMA (B3S) brochure

Bathyswath-3 OEM

Sonar only solution in OEM configuration

Bathyswath-3 OEM has the core components provided as a package of parts for integration in clients’ vessels and vehicles, including Autonomous Underwater Vehicles (AUVs).

Simultaneous frequencies : 400 kHz / 800 kHz / 1600 kHz

  • Operational slant range (m): 125/60/30
  • Maximum slant range (m): 185/95/45
  • Horizontal beam width, (2-way): 0.5°/0.25°/0.25°
  • Spatial resolution limit (mm): 3 / 1.8 / 0.9
  • Pod transducer dimensions (mm): 329 x 128 x 115
  • Pod transducer weight (kg): 2
  • Pod transducer depth rating (m): 100 (Higher on request)
  • Marine services
  • Research
  • Environment
  • Natural Resources
  • Archaeology
  • Military Rapid Environmental Assessments (REA)
Download of documents

Bathyswath-3 OEM brochure
